RPH24-06
Eddynet hydraulic pick-up sweeper for loaders.
- Requires 16 GPM at 2000 PSI for a recommended brush speed of 150 RPM.
- Brush speed is controlled by the equipment engine speed.
- Powered by one hydraulic orbital motor(s) mounted to the core of the brush.
- Third valve is required to operate the brush and bucket ( double action) or (if you have a hammer valve collect the sweeper here and collect the bucket on the third valve).
- Hydraulic hoses that supply the third valve of the equipment must be 3/4" (19 mm) inside diameter.
- 6 3/8" outside diameter brush core.
- 24" diameter refillable convoluted wafers.
- Choice of poly, wire or poly / wire bristles.

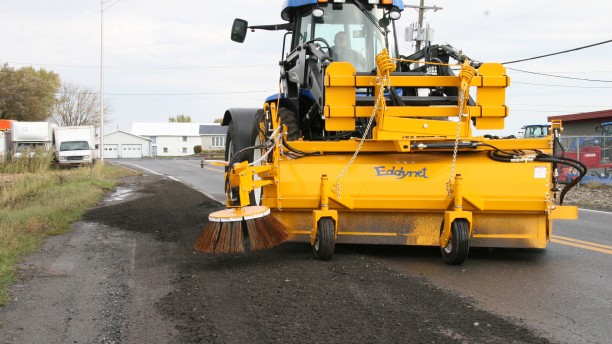

RLHQ32-08 / RLHQ32-09 / RLHQ32-09-02
Eddynet hydraulic pick-up angular sweeper for loaders.
Learn More

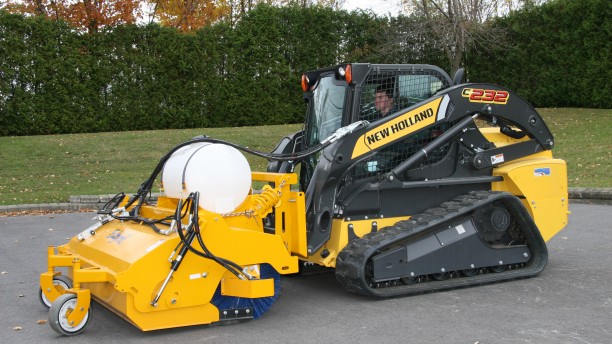

RPHB24-04 / RPHB24-05 / RPHB24-06 / RPHB24-07 / RPHB24-08 / RPHB24-09
Eddynet hydraulic pick-up sweeper for small loaders.
Learn More

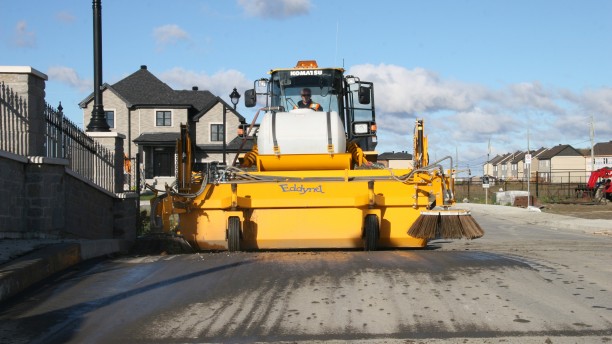

RPHB32-08-02 / RPHB32-09-02
Eddynet hydraulic pick-up sweeper for loaders.
- Requires 22 GPM at 2000 PSI for a recommended brush speed of 150 RPM.
- Brush speed is controlled by the equipment engine speed.
- Powered by dual hydraulic orbital motor(s) mounted to the core of the brush.
- Third valve is required to operate the brush and bucket.
- Hydraulic hoses that supply the third valve of the equipment must be 3/4" (19 mm) inside diameter.
- Weight 2030 kgs. (4470Lbs.)
- 10" (254 mm) outside diameter brush core.
- 32" (813 mm) diameter refillable convoluted wafers.
- Choice of poly, wire or poly / wire bristles.
