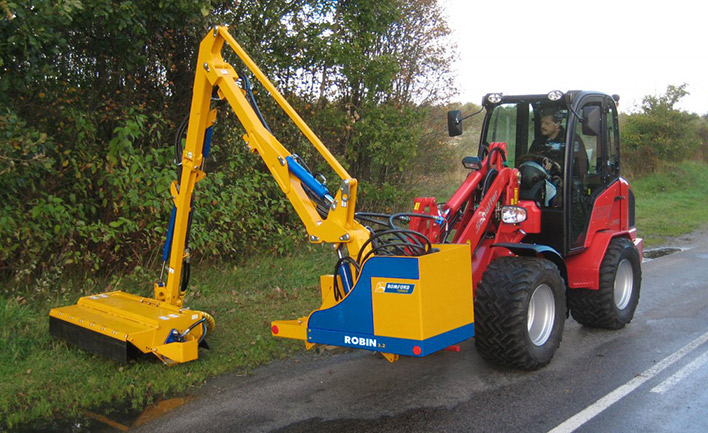

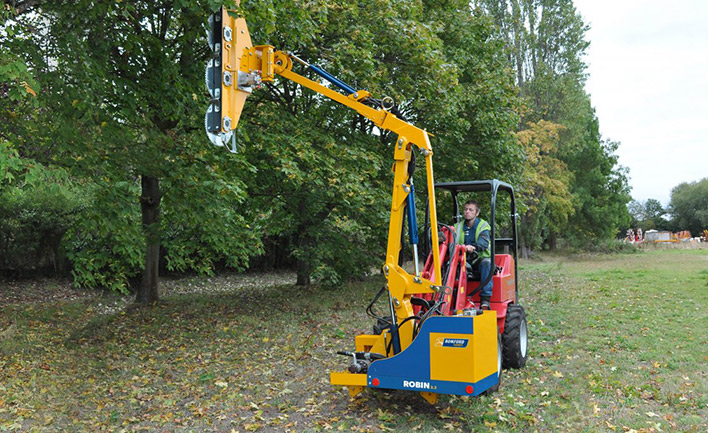

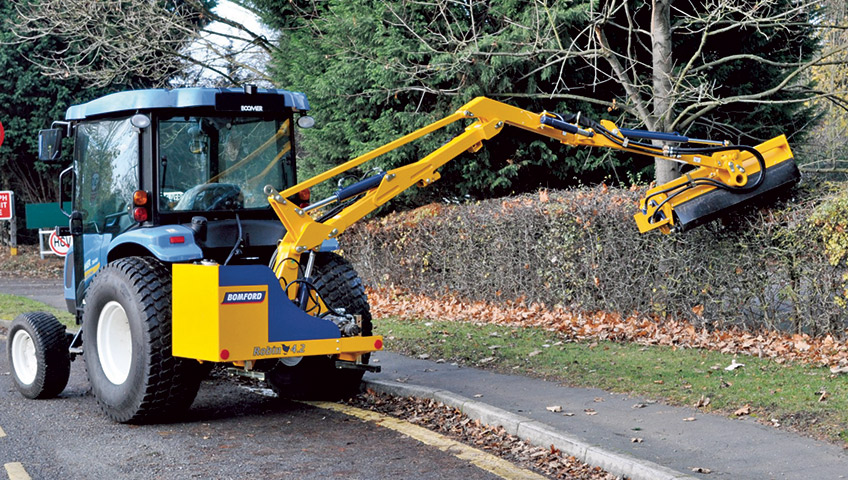

Bomford Robin Arm Mower
The Robin is a professional compact Arm mower - perfect for amenity and estate use and also a firm favourite with small farmers as it can verge mow or hedge trim just as well as some of our larger models.
Bomford Robin Mower Features:
- 3.4m or 4.3m reach options
- End drive cutting head or cutter bar
- Electronic Proportional Controlled (EPC) optional
- Front mount option
- Low friction cable control
Product Information
Product Manual
Robin – Working Reach Dimensions
Head used for calcs: 905mm
|
3.4m (11'2") |
4.3m (14'2") |
A |
3.4m (11'2") |
4.3m (14'2") |
B |
3.0m (9′10″) |
4.0m (13'2") |
C |
1.98m (6′6″) |
2.98m (9'10") |
D |
3.3m (10'10") |
4.3m (14'2") |
E |
4.3m (14'11") |
5.3m (17'5") |
X |
1.00m (3'4") |
1.00m (3'4") |
Y |
1.34m (4'7") |
1.34m (4'7") |
MODELS |
3.4m (11'2") |
4.3m (14'2") |
Tractor Requirements |
Minimum Horse Power |
30-40hp |
30-40hp |
Minimum Weight |
1300kg / 2866 Lbs |
2000kg / 4409Lbs |
Overall Machine Parameters |
Machine Weight |
594kg / 1310Lbs |
670kg / 1477Lbs |
Capacity of Oil Tank |
80L / 17.6USG |
80L / 17.6 USG |
Weight of Machine with Oil but Without Head |
464kg / 1023Lbs |
530kg / 1168Lbs |
Hydraulic System |
System Capability |
30hp |
30hp |
Pump Flow Rate |
50L / 13.2USG |
50L / 13.2USG |
Pump Type (Gear / Piston / Helical) |
Gear |
Gear |
Pump Arrangement (Twin / Tandem Inline) |
Twin |
Twin |
Independent Hydraulics |
Standard |
Standard |
Oil Cooler |
Not Available |
Not Available |
Arm Features and Main Frame |
Telescopic Arm |
Not Available |
Not Available |
Telescopic Arm Stroke |
Not Available |
Not Available |
Power Slew |
Not Available |
Not Available |
Power Slew Angle |
Not Available |
Not Available |
Gravity Breakout |
Not Available |
Not Available |
Hydraulic Breakout |
Standard |
Standard |
Armfloat - Manual |
Optional |
Optional |
Armfloat - Electronic |
Optional |
Optional |
Headfloat - Manual |
Optional |
Optional |
Headfloat - Electronic |
Optional |
Optional |
Left Hand Cutting |
Optional |
Optional |
Right Hand Cutting |
Optional |
Optional |
MODELS |
3.4m (11'2") |
4.3m (14'2") |
Base Mounting Options |
Front Mount |
Optional |
Optional |
Mid Mount |
Not Available |
Not Available |
Rear Mount |
Standard |
Standard |
Three Point Linkage (CAT II) |
Standard |
Standard |
Axle Bracket |
Not Available |
Not Available |
Arm Attachments Available |
Variable Track Bracket (VTB) |
Not Available |
Not Available |
Sheartrim Cutter Bar |
Optional |
Optional |
Pro-Saw |
Optional |
Optional |
Ditch Cleaner |
Not Available |
Not Available |
Rotary Head |
Not Available |
Not Available |
Cutting Heads |
905mm Flail Head 102mmRoller |
Optional |
Optional |
1000mm Flail Head with 102mm Roller |
Optional |
Optional |
1.2m and 1.5m Cutterbars |
Optional |
Optional |
Accessories |
Road Lights |
Not Available |
Not Available |
Debris Blower |
Not Available |
Not Available |
Warning Arrow - Magnetic |
Optional |
Optional |
Cab Guard Kit |
Optional |
Optional |
MODELS |
3.4m (11'2") |
4.3m (14'2") |
Controls |
Cable Control (CC) |
Standard |
Standard |
Electronic Proportional Control (EPC) |
Optional |
Optional |
Intelligent Control System (ICS) |
Not Available |
Not Available |
Low Pressure Hydraulics (LPH) |
Not Available |
Not Available |
Cable Rotor Reverse |
Optional |
Optional |
Electronic Rotor Reverse |
Optional |
Optional |
