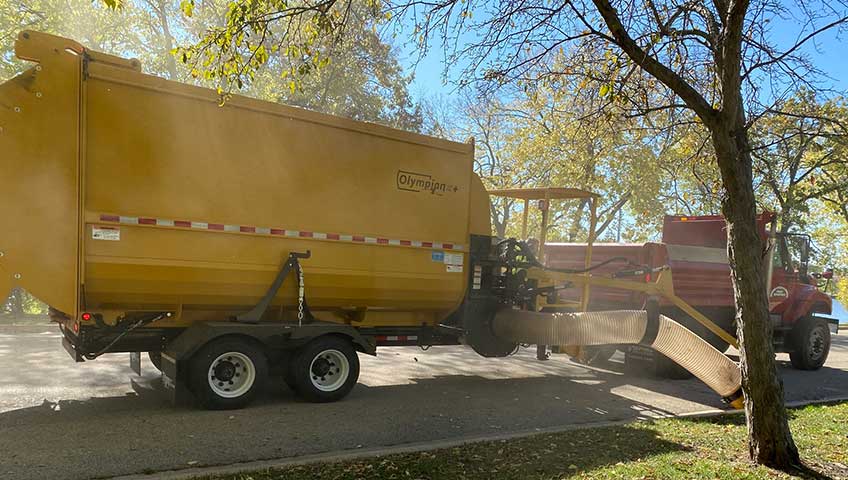

Olympian Leaf Pro Plus
The gated operator platform of the Olympian Leaf Pro Plus will seriously change the way you pick up leaves. Make back-breaking work easy and keep your team injury free, reducing fatigue and increasing efficiency.

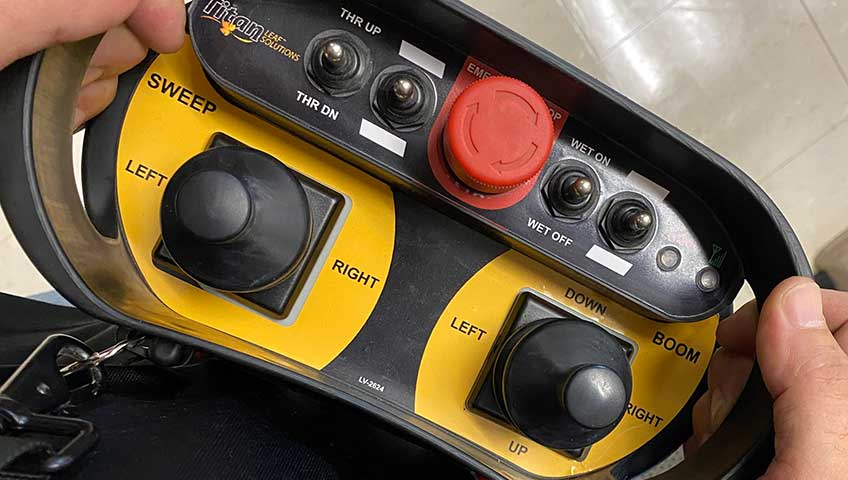

The CANbus joystick controls, swivel seat and 180 degree swing extended ready collection boom allow the operator maximum control and visibility when collecting leaves.
The self-contained unit will allow the team to stay out on the road longer and collect more debris, before needing to empty.
Olympian Leaf Pro Plus Features:
- Gated operator platform with swivel seat & CANbus joystick controls.
- Safety interlock system on suction fan & belt guard.
- 40 gallon tank.
- 74hp, tier 4, liquid-cooled diesel-powered engine.
- Heavy duty direct drive fan.
- 23-30 yard collection body with packer style tailgate.
- DOT compliant lighting, markings, yellow flashers.
- 16" pickup hose with 3-function hydraulically controlled pickup arm (optional).

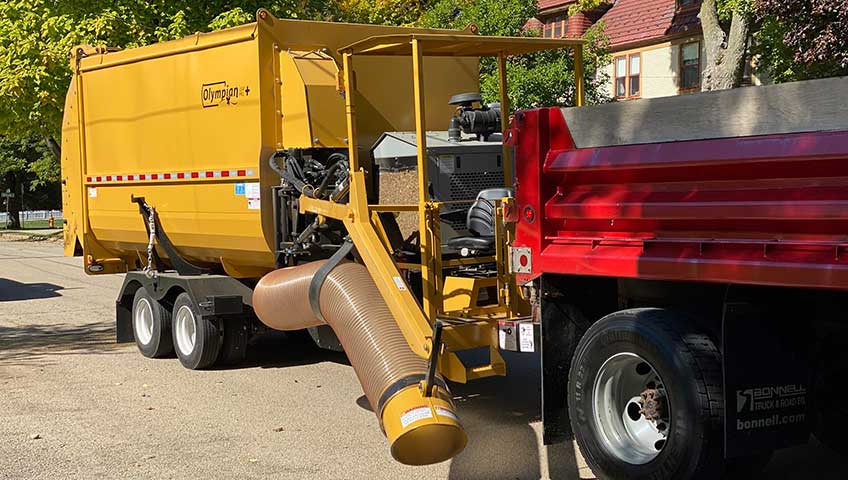

- 180 degree swing extended ready collection boom.
- Proportional electric hydraulic valve controls.
| OLYMPIAN LEAF PRO PLUS | STANDARD CAPACITY | HIGH CAPACITY |
| Empty Weight | 13,000 lbs | 14,500 lbs |
| Collection Capacity | 20 cubic yards | 30 cubic yards |
| Fuel Tank, Aluminum | 40 U.S. Gallons | 40 U.S. Gallons |
| Dump Angle | 52 | 52 |
| Collection Nozzles | Right Side | Right Side |
| Battery | 12 Volt, 1190 Amp; 950 CCA | 12 Volt, 1190 Amp; 950 CCA |
| Fan Diameter | 30" | 30" |
| Axles | 12k Tandem | 16k Tandem |
| Tires | ST235/85R16 | ST215/75R17.5 |
Olympian Leaf Pro Plus Options:
- High Capacity (30 yard).
- 87 HP Kubota gasoline engine.
- 74 HP John Deere Tier 4 diesel engine.
- 99 HP John Deere Tier 4 diesel engine.
- Transfluid coupler.
- Heavy duty industrial rubber hose.
- Straight rear exhaust.
- Down draft tailgate exhaust.
- Down draft dust control with water suppression.
- Directional lightbar.
- Hydraulic jack.
- Quick detach hose.
